Scenario

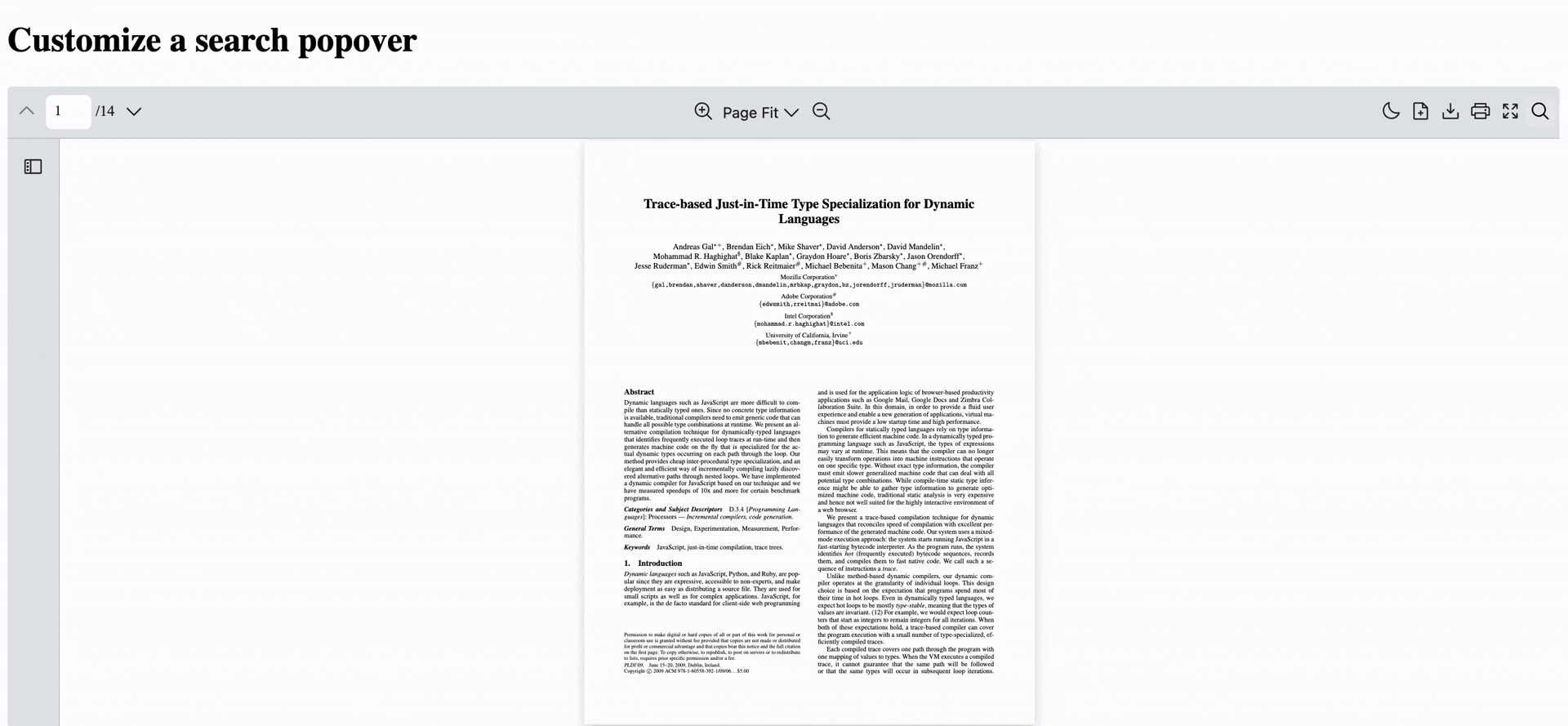

Create a custom search functionality with a popover interface in React PDF Kit. The popover will include a search input field and additional options like “whole words” and “match case” filtering.

What to Use

The useSearchContext hook provides access to the search functionality and configuration of the React PDF Viewer component. Use this hook to control search behavior and query updates.

Here are the key concepts we’re using for this example

Name	Objective
setSearch	Function to update the search query
setSearchOptions	Function to configure search behavior (wholeWords, matchCase)
currentMatchPosition	Tracks which match is currently highlighted
totalMatches	Shows the total number of search results found
prevMatch	Function to go to the previous search result
nextMatch	Function to go to the next search result

To make the search popover experience smooth, you’ll want these 5 components:

Notes: This example will be using RPLayout with Individual Tools. Please refer to RPLayout for more information.

1. Create a custom search icon component

   JSX

   Icon.jsx

   export const SearchIcon = () => {
    return (
      <svg xmlns="http://www.w3.org/2000/svg" x="0px" y="0px" viewBox="0 0 30 30">
        <path d="M 13 3 C 7.4889971 3 3 7.4889971 3 13 C 3 18.511003 7.4889971 23 13 23 C 15.396508 23 17.597385 22.148986 19.322266 20.736328 L 25.292969 26.707031 A 1.0001 1.0001 0 1 0 26.707031 25.292969 L 20.736328 19.322266 C 22.148986 17.597385 23 15.396508 23 13 C 23 7.4889971 18.511003 3 13 3 z M 13 5 C 17.430123 5 21 8.5698774 21 13 C 21 17.430123 17.430123 21 13 21 C 8.5698774 21 5 17.430123 5 13 C 5 8.5698774 8.5698774 5 13 5 z"></path>
      </svg>
    );
   }
   export const MoreOptionsIcon = () => {
    return (
      <>
        <svg
          fill="#000000"
          viewBox="0 0 32 32"
          id="Outlined"
          xmlns="http://www.w3.org/2000/svg"
        >
          <g id="SVGRepo_bgCarrier" stroke-width="0"></g>
          <g
            id="SVGRepo_tracerCarrier"
            stroke-linecap="round"
            stroke-linejoin="round"
          ></g>
          <g id="SVGRepo_iconCarrier">
            {" "}
            <title></title>{" "}
            <g id="Fill">
              {" "}
              <path d="M16,13a3,3,0,1,0,3,3A3,3,0,0,0,16,13Zm0,4a1,1,0,1,1,1-1A1,1,0,0,1,16,17Z"></path>{" "}
              <path d="M24,13a3,3,0,1,0,3,3A3,3,0,0,0,24,13Zm0,4a1,1,0,1,1,1-1A1,1,0,0,1,24,17Z"></path>{" "}
              <path d="M8,13a3,3,0,1,0,3,3A3,3,0,0,0,8,13Zm0,4a1,1,0,1,1,1-1A1,1,0,0,1,8,17Z"></path>{" "}
            </g>{" "}
          </g>
        </svg>
      </>
    );
   };

   TSX

   Icon.tsx

   import { FC } from "react";
   export const SearchIcon : FC = () => {
    return (
      <svg xmlns="http://www.w3.org/2000/svg" x="0px" y="0px" viewBox="0 0 30 30">
        <path d="M 13 3 C 7.4889971 3 3 7.4889971 3 13 C 3 18.511003 7.4889971 23 13 23 C 15.396508 23 17.597385 22.148986 19.322266 20.736328 L 25.292969 26.707031 A 1.0001 1.0001 0 1 0 26.707031 25.292969 L 20.736328 19.322266 C 22.148986 17.597385 23 15.396508 23 13 C 23 7.4889971 18.511003 3 13 3 z M 13 5 C 17.430123 5 21 8.5698774 21 13 C 21 17.430123 17.430123 21 13 21 C 8.5698774 21 5 17.430123 5 13 C 5 8.5698774 8.5698774 5 13 5 z"></path>
      </svg>
    );
   }
   export const MoreOptionsIcon : FC = () => {
    return (
      <>
        <svg
          fill="#000000"
          viewBox="0 0 32 32"
          id="Outlined"
          xmlns="http://www.w3.org/2000/svg"
        >
          <g id="SVGRepo_bgCarrier" stroke-width="0"></g>
          <g
            id="SVGRepo_tracerCarrier"
            stroke-linecap="round"
            stroke-linejoin="round"
          ></g>
          <g id="SVGRepo_iconCarrier">
            {" "}
            <title></title>{" "}
            <g id="Fill">
              {" "}
              <path d="M16,13a3,3,0,1,0,3,3A3,3,0,0,0,16,13Zm0,4a1,1,0,1,1,1-1A1,1,0,0,1,16,17Z"></path>{" "}
              <path d="M24,13a3,3,0,1,0,3,3A3,3,0,0,0,24,13Zm0,4a1,1,0,1,1,1-1A1,1,0,0,1,24,17Z"></path>{" "}
              <path d="M8,13a3,3,0,1,0,3,3A3,3,0,0,0,8,13Zm0,4a1,1,0,1,1,1-1A1,1,0,0,1,8,17Z"></path>{" "}
            </g>{" "}
          </g>
        </svg>
      </>
    );
   };

2. Create a custom search popover component

   JSX

   SearchPopover.jsx

   import { useSearchContext } from "@react-pdf-kit/viewer";
   import { useState } from "react";
   import { MoreOptionsIcon } from "./Icon";

   const SearchOptions = () => {
    const { setSearchOptions } = useSearchContext();
    return (
      <div
        style={{
          position: "absolute",
          minWidth: "max-content",
          zIndex: 5,
          top: "100%",
          right: 0,
          backgroundColor: "#f1f2f4",
          padding: "8px",
          borderRadius: "4px",
        }}
      >
        <div style={{ display: "flex", alignItems: "center", gap: "4px" }}>
          <input
            type="checkbox"
            onClick={() =>
              setSearchOptions((val) => ({ ...val, wholeWords: !val.wholeWords }))
            }
          />
          <label>Whole words</label>
        </div>
        <div style={{ display: "flex", alignItems: "center", gap: "4px" }}>
          <input
            type="checkbox"
            onClick={() =>
              setSearchOptions((val) => ({ ...val, matchCase: !val.matchCase }))
            }
          />
          <label>Matches case</label>
        </div>
      </div>
   );

   export const SearchPopover = () => {
    const {
      setSearch,
      currentMatchPosition,
      totalMatches,
      prevMatch,
      nextMatch,
    } = useSearchContext();
    const [isOpen, setIsOpen] = useState(false);
    return (
      <div
        style={{
          position: "absolute",
          minWidth: "max-content",
          zIndex: 5,
          top: "100%",
          right: 0,
          backgroundColor: "#f1f2f4",
          padding: "8px",
          display: "flex",
          borderRadius: "4px",
          alignItems: "center",
          gap: "4px",
        }}
      >
        <input
          placeholder="...Search"
          style={{ height: "100%" }}
          onChange={(e) => setSearch(e.target.value)}
        />


        <span>
          {currentMatchPosition} / {totalMatches}
        </span>
        <button onClick={prevMatch}>Prev</button>
        <button onClick={nextMatch}>Next</button>

        <button
          style={{
            position: "relative",
            width: "20px",
            height: "20px",
            padding: "4px",
            cursor: "pointer",
            borderRadius: "4px",
            border: 0,
          }}
          onClick={() => setIsOpen((prevValue) => !prevValue)}
        >
          <MoreOptionsIcon />
        </button>
        {isOpen && <SearchOptions />}
      </div>
    );
   };

   TSX

   SearchPopover.tsx

   import { useSearchContext } from "@react-pdf-kit/viewer";
   import { useState , FC } from "react";
   import { MoreOptionsIcon } from "./Icon";

   const SearchOptions : FC = () => {
    const { setSearchOptions } = useSearchContext();
    return (
      <div
        style={{
          position: "absolute",
          minWidth: "max-content",
          zIndex: 5,
          top: "100%",
          right: 0,
          backgroundColor: "#f1f2f4",
          padding: "8px",
          borderRadius: "4px",
        }}
      >
        <div style={{ display: "flex", alignItems: "center", gap: "4px" }}>
          <input
            type="checkbox"
            onClick={() =>
              setSearchOptions((val) => ({ ...val, wholeWords: !val.wholeWords }))
            }
          />
          <label>Whole words</label>
        </div>
        <div style={{ display: "flex", alignItems: "center", gap: "4px" }}>
          <input
            type="checkbox"
            onClick={() =>
              setSearchOptions((val) => ({ ...val, matchCase: !val.matchCase }))
            }
          />
          <label>Matches case</label>
        </div>
      </div>
   );

   export const SearchPopover : FC = () => {
    const {
      setSearch,
      currentMatchPosition,
      totalMatches,
      prevMatch,
      nextMatch,
    } = useSearchContext();
    const [isOpen, setIsOpen] = useState<boolean>(false);
    return (
      <div
        style={{
          position: "absolute",
          minWidth: "max-content",
          zIndex: 5,
          top: "100%",
          right: 0,
          backgroundColor: "#f1f2f4",
          padding: "8px",
          display: "flex",
          borderRadius: "4px",
          alignItems: "center",
          gap: "4px",
        }}
      >
        <input
          placeholder="...Search"
          style={{ height: "100%" }}
          onChange={(e) => setSearch(e.target.value)}
        />


        <span>
          {currentMatchPosition} / {totalMatches}
        </span>
        <button onClick={prevMatch}>Prev</button>
        <button onClick={nextMatch}>Next</button>

        <button
          style={{
            position: "relative",
            width: "20px",
            height: "20px",
            padding: "4px",
            cursor: "pointer",
            borderRadius: "4px",
            border: 0,
          }}
          onClick={() => setIsOpen((prevValue) => !prevValue)}
        >
          <MoreOptionsIcon />
        </button>
        {isOpen && <SearchOptions />}
      </div>
    );
   };

3. Create a custom search tool component from the custom search icon and custom search popover components

   JSX

   CustomSearchTool.jsx

   import { useState } from "react";
   import { SearchIcon } from "./Icon";
   import { SearchPopover } from "./SearchPopover";

   export const CustomSearchTool = () => {
     const [isOpen, setIsOpen] = useState(false);
     return (
       <div
         style={{
           position: "relative",
         }}
       >
         <button
           style={{
             position: "relative",
             width: "28px",
             height: "28px",
             padding: "4px",
             cursor: "pointer",
             borderRadius: "4px",
             border: 0,
           }}
           onClick={() => setIsOpen((prevValue) => !prevValue)}
         >
           <SearchIcon />
         </button>
         {isOpen && <SearchPopover />}
       </div>
     );
   };

   TSX

   CustomSearchTool.tsx

   import { FC, useState } from "react";
   import { SearchIcon } from "./Icon";
   import { SearchPopover } from "./SearchPopover";

   export const CustomSearchTool: FC = () => {
    const [isOpen, setIsOpen] = useState<boolean>(false);
    return (
      <div
        style={{
          position: "relative",
        }}
      >
        <button
          style={{
            position: "relative",
            width: "28px",
            height: "28px",
            padding: "4px",
            cursor: "pointer",
            borderRadius: "4px",
            border: 0,
          }}
          onClick={() => setIsOpen((prevValue) => !prevValue)}
        >
          <SearchIcon />
        </button>
        {isOpen && <SearchPopover />}
      </div>
    );
   };

4. Create a custom horizontal toolbar component

   JSX

   CustomHorizontalTool.jsx

   import {
    FileDownloadTool,
    FileUploadTool,
    FullScreenTool,
    InputPageTool,
    NextPageTool,
    PreviousPageTool,
    PrintTool,
    ThemeSwitcherTool,
    ZoomInTool,
    ZoomLevelTool,
    ZoomOutTool,
   } from "@react-pdf-kit/viewer";
   import { CustomSearchTool } from "./CustomSearchTool";

   export const CustomHorizontalBar = () => {
    return (
      <>
        <PreviousPageTool />
        <InputPageTool />
        <NextPageTool />
        <div style={{ marginLeft: "auto" }}>
          <ZoomInTool />
        </div>
        <ZoomLevelTool />
        <ZoomOutTool />
        <div style={{ marginLeft: "auto" }} />
        <ThemeSwitcherTool />
        <FileUploadTool />
        <FileDownloadTool />
        <PrintTool />
        <FullScreenTool />
        <CustomSearchTool />
      </>
    );
   };

   TSX

   CustomHorizontalTool.tsx

   import {
    FileDownloadTool,
    FileUploadTool,
    FullScreenTool,
    InputPageTool,
    NextPageTool,
    PreviousPageTool,
    PrintTool,
    ThemeSwitcherTool,
    ZoomInTool,
    ZoomLevelTool,
    ZoomOutTool,
   } from "@react-pdf-kit/viewer";
   import { FC } from "react";
   import { CustomSearchTool } from "./CustomSearchTool";

   export const CustomHorizontalBar : FC = () => {
    return (
      <>
        <PreviousPageTool />
        <InputPageTool />
        <NextPageTool />
        <div style={{ marginLeft: "auto" }}>
          <ZoomInTool />
        </div>
        <ZoomLevelTool />
        <ZoomOutTool />
        <div style={{ marginLeft: "auto" }} />
        <ThemeSwitcherTool />
        <FileUploadTool />
        <FileDownloadTool />
        <PrintTool />
        <FullScreenTool />
        <CustomSearchTool />
      </>
    );
   };

5. Configure the custom horizontal toolbar component to the React PDF Viewer component

   JSX

   CustomHorizontalToolbar.jsx

   import {
    RPLayout,
    RPPages,
    RPProvider,
    RPVerticalBar,
    RPConfig,
   } from "@react-pdf-kit/viewer";
   import { CustomHorizontalBar } from "./CustomHorizontalBar";

   const App = () => {
    return (
      <div>
        <RPConfig>
          <RPProvider src="https://raw.githubusercontent.com/mozilla/pdf.js/ba2edeae/web/compressed.tracemonkey-pldi-09.pdf">
            <div>
              <RPLayout
                toolbar={{
                  topbar: { component: <CustomHorizontalBar /> },
                  leftSidebar: { component: <RPVerticalBar /> },
                }}
              >
                <RPPages />
              </RPLayout>
            </div>
          </RPProvider>
        </RPConfig>
      </div>
    );
   };

   export default App

   TSX

   CustomHorizontalToolbar.tsx

   import {
    RPLayout,
    RPPages,
    RPProvider,
    RPVerticalBar,
    RPConfig,
   } from "@react-pdf-kit/viewer";
   import { CustomHorizontalBar } from "./CustomHorizontalBar";

   const App = () => {
    return (
      <div>
        <RPConfig>
          <RPProvider src="https://raw.githubusercontent.com/mozilla/pdf.js/ba2edeae/web/compressed.tracemonkey-pldi-09.pdf">
            <div>
              <RPLayout
                toolbar={{
                  topbar: { component: <CustomHorizontalBar /> },
                  leftSidebar: { component: <RPVerticalBar /> },
                }}
              >
                <RPPages />
              </RPLayout>
            </div>
          </RPProvider>
        </RPConfig>
      </div>
    );
   };

   export default App

Notes

• The CustomHorizontalBar component uses local state (isOpen) to control the visibility of the search popover
• The SearchPopover component also maintains its own state for the options menu visibility
• The zIndex: 5 ensures popovers appear above other content
