Scenario

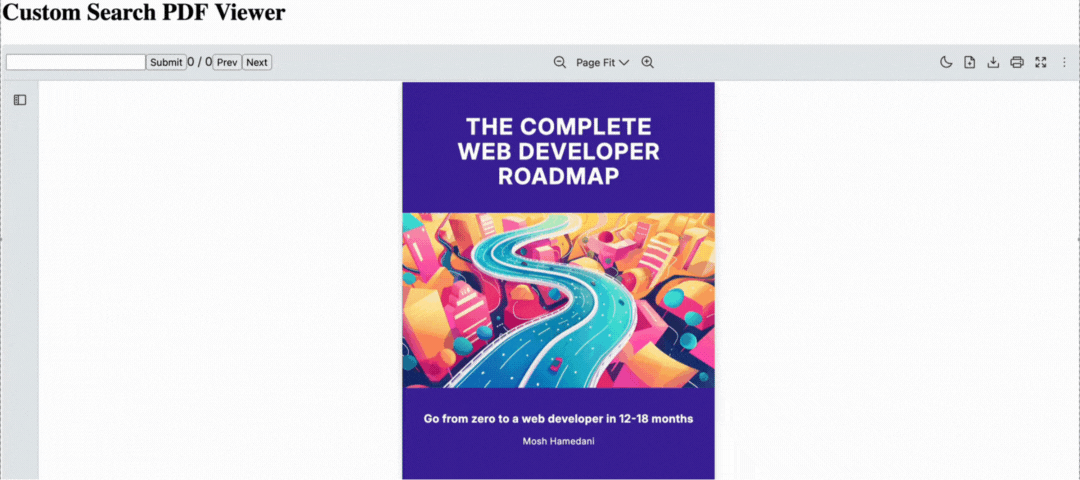

You need a custom search bar on the React PDF Viewer component’s top bar instead of using the default search tool.

• To match your app’s design system
• To add debounce or special search logic
• To place the search bar directly in the top bar

What to Use

You can fully control the search UI such as the input field, navigation buttons, and match counter while keeping it integrated with the React PDF Kit’s built-in search system.

The useSearchContext provides a function to search and highlight the first occurrence of a text in a React PDF.

Here are the functions we’re using for this example

Name	Objective
currentMatchPosition	Return the index (1-based) of the currently highlighted match within the total search results. Help track the user’s current position among matches
loading	Indicate whether a search operation is currently in progress
nextMatch	Navigates to and highlights the next search result in the document. Wraps around to the first match if the end is reached
prevMatch	Navigate to and highlights the previous search result in the document. Wrap around to the last match if the beginning is reached
search	Execute a search for the specified text within the currently loaded PDF document.
setSearch	Update the search query value without immediately executing a new search
totalMatches	Indicate the total number of text matches found in the PDF document for the current search term

After integrating the useSearchContext hook into a custom search UI, you may use createPortal to add the component into the top bar of the Viewer.

Name	Objective
createPortal	Render the given React content into a specific container

JSX

import { useState, useCallback, useRef, useEffect } from "react";
import {
  RPConfig,
  RPProvider,
  RPLayout,
  RPPages,
  useSearchContext,
  RPHorizontalBar,
  RPVerticalBar
} from "@react-pdf-kit/viewer";
import React from "react";
import { createPortal } from "react-dom";

const CustomSearch = () => {
const {
search,
setSearch,
currentMatchPosition,
totalMatches,
nextMatch,
prevMatch,
loading,
} = useSearchContext();

const [searchValue, setSearchValue] = useState(search);

const handleChange = useCallback(
(e) => {
setSearchValue(e.target.value);
},
[]
);

// Debounce search input
useEffect(() => {
const timer = setTimeout(() => {
setSearch(searchValue);
}, 500);

    return () => clearTimeout(timer);

}, [searchValue,searchValue]);

const handleSubmit = useCallback(() => {
setSearch(searchValue);
}, [searchValue, setSearch]);

const handleNext = useCallback(() => {
nextMatch();
}, [nextMatch]);

const handlePrev = useCallback(() => {
prevMatch();
}, [prevMatch]);

return (
<div>
<input value={searchValue} onChange={handleChange} />
<button onClick={handleSubmit}>Submit</button>
<span>
{currentMatchPosition} / {totalMatches}
</span>
<button onClick={handlePrev}>Prev</button>
<button onClick={handleNext}>Next</button>
{loading && <div>searching...</div>}
</div>
);
};

export const AppPdfViewerSearch = () => {
  const ref = useRef(null);
  const [target, setTarget] = useState(null);

useEffect(() => {
const elemTopBarLeft = ref.current?.querySelector('[data-rp="topBarLeft"]');
if (elemTopBarLeft) {
const wrapper = document.createElement("div");
ref.current = wrapper;

      elemTopBarLeft.prepend(wrapper);
      setTarget(wrapper);
    }

}, []);

return (
<>
<RPConfig licenseKey="YOUR_DOMAIN_TOKEN">
<RPProvider src="https://cdn.codewithmosh.com/image/upload/v1721763853/guides/web-roadmap.pdf">
<div ref={ref}>
<RPLayout
toolbar={{
                  topbar: { component: <RPHorizontalBar slots={{ searchTool: false, pageNavigationTool: false }} /> }
leftSidebar: { component: <RPVerticalBar /> }
}} >
{target && createPortal(<CustomSearch />, target)}
<RPPages />
</RPLayout>
</div>
</RPProvider>
</RPConfig>
</>
);
};

TSX

import { useState, useCallback, useRef, useEffect, FC } from "react";
import {
  RPConfig,
  RPProvider,
  RPLayout,
  RPPages,
  useSearchContext,
  RPHorizontalBar,
  RPVerticalBar
} from "@react-pdf-kit/viewer";
import React from "react";
import { createPortal } from "react-dom";

const CustomSearch = () => {
  const {
    search,
    setSearch,
    currentMatchPosition,
    totalMatches,
    nextMatch,
    prevMatch,
    loading,
  } = useSearchContext();

  const [searchValue, setSearchValue] = useState(search);

  const handleChange = useCallback(
    (e: React.ChangeEvent<HTMLInputElement>) => {
      setSearchValue(e.target.value);
    },
    []
  );

  // Debounce search input
  useEffect(() => {
    const timer = setTimeout(() => {
      setSearch(searchValue);
    }, 500);

    return () => clearTimeout(timer);
  }, [searchValue,searchValue]);

  const handleSubmit = useCallback(() => {
    setSearch(searchValue);
  }, [searchValue, setSearch]);

  const handleNext = useCallback(() => {
    nextMatch();
  }, [nextMatch]);

  const handlePrev = useCallback(() => {
    prevMatch();
  }, [prevMatch]);

  return (
    <div>
      <input value={searchValue} onChange={handleChange} />
      <button onClick={handleSubmit}>Submit</button>
      <span>
        {currentMatchPosition} / {totalMatches}
      </span>
      <button onClick={handlePrev}>Prev</button>
      <button onClick={handleNext}>Next</button>
      {loading && <div>searching...</div>}
    </div>
  );
};

export const AppPdfViewerSearch: FC = () => {
  const ref = useRef<HTMLDivElement | null>(null);
  const [target, setTarget] = useState<Element | null>(null);

  useEffect(() => {
    const elemTopBarLeft = ref.current?.querySelector('[data-rp="topBarLeft"]');
    if (elemTopBarLeft) {
      const wrapper = document.createElement("div");
      ref.current = wrapper;

      elemTopBarLeft.prepend(wrapper);
      setTarget(wrapper);
    }
  }, []);

  return (
    <>
      <RPConfig licenseKey="YOUR_DOMAIN_TOKEN">
        <RPProvider src="https://cdn.codewithmosh.com/image/upload/v1721763853/guides/web-roadmap.pdf">
          <div ref={ref}>
            <RPLayout
              toolbar={{
                  topbar: { component: <RPHorizontalBar slots={{ searchTool: false, pageNavigationTool: false }} /> }
                  leftSidebar: { component: <RPVerticalBar /> }
                }}
            >
              {target && createPortal(<CustomSearch />, target)}
              <RPPages />
            </RPLayout>
          </div>
        </RPProvider>
      </RPConfig>
    </>
  );
};
